Sceneramics, Part 1

Ten 'Sceneramics' were built by Pullman Standard for Milwaukee Road, numbered 50 to 59 and were delivered in 1952 at a cost of $325,000 each. Originally christened Super-Domes*, the cars were painted in Milwaukee's attractive harvest orange, royal maroon and black passenger scheme. The Sceneramics are often confused with other specialty dome cars, so let's get some definitions out of the way:
  • Sceneramic - a full-length dome, built as Super-Domes for Milwaukee Road in 1952, retired by VIA in 1982,  used mainly between Winnipeg-Edmonton-Vancouver (*I'll use the term Sceneramic throughout this series for clarity)
  • Skytop (Skyview in CN service) - an 8 double-bedroom, round-end bar lounge car, built for Milwaukee Road in 1949, refurbished by CN at Pointe St Charles in 1965, retired by CN in 1977, used mainly in Eastern Canada, the Corridor and Jasper-Prince Rupert

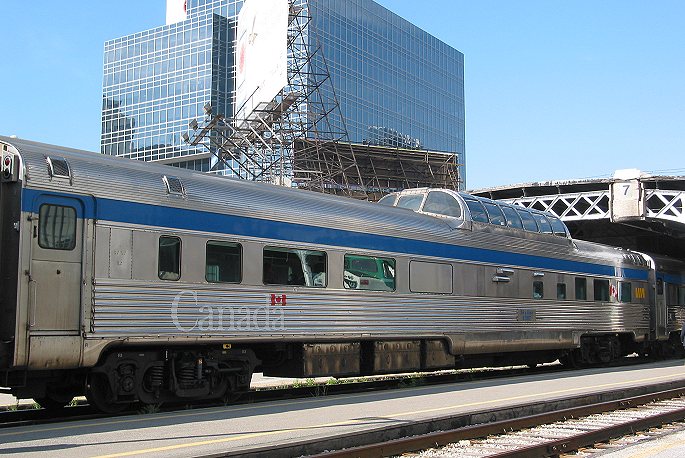

  • Skyline - a mid-train dome, built for CP in 1955, still in service with VIA, used in Eastern and Western Canada
The Sceneramic design was unique for its time, involving three-level construction:

51" from railhead car-end entrance level (no vestibules) with one washroom at each end, two Waukesha DC enginators (generators) and electrical equipment at one end, A/C unit, compressor and water tanks at other end. Placement of this heavy equipment was necessitated by the drop-floor design of the car, and essentially made the car mechanically independent from the rest of the train. The entrances led to side passageways that were open to dome level, leading down three stairs to:

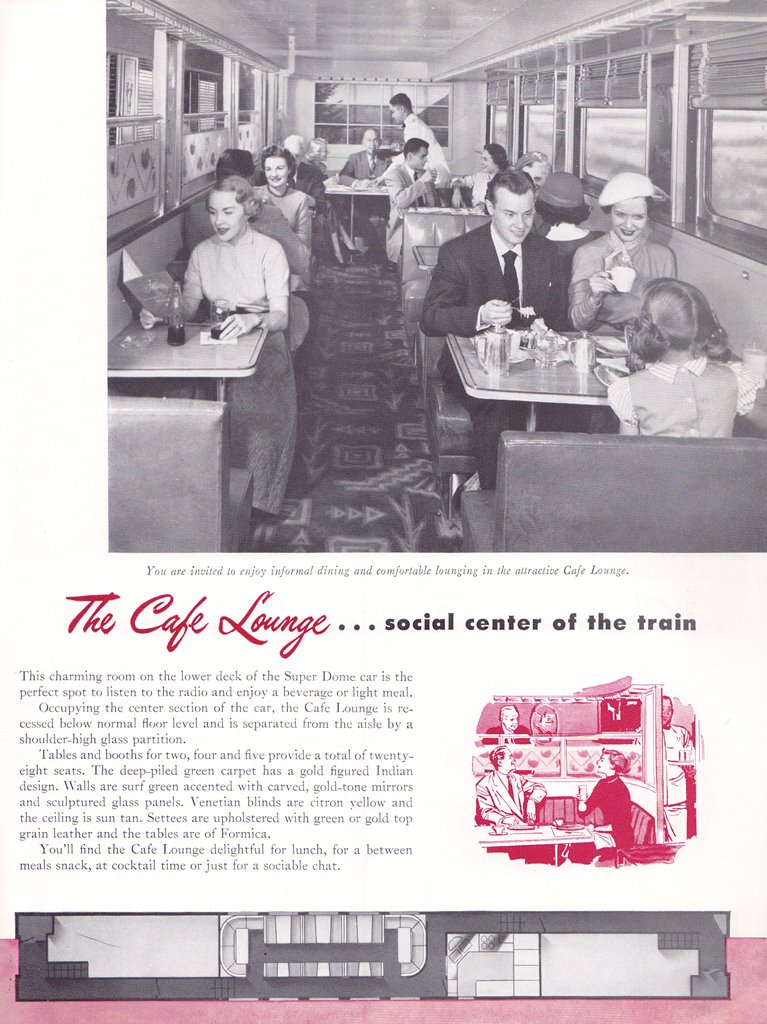

23" from railhead 28-seat lounge and stainless steel kitchen/bar in centre of car below:

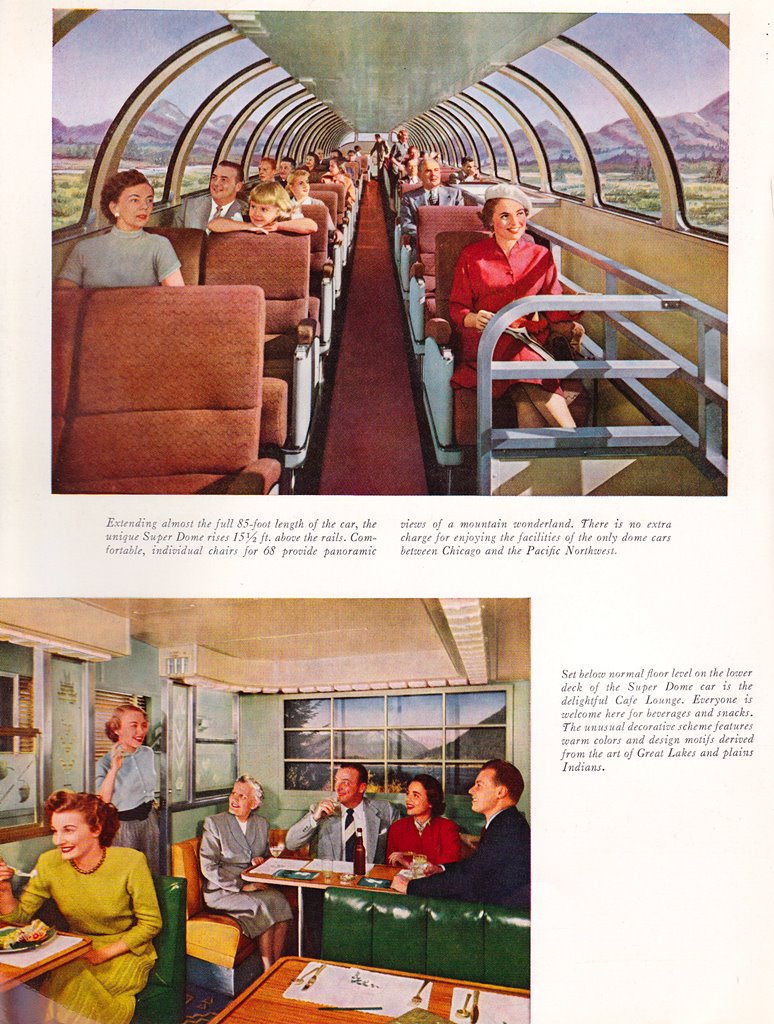

104" from railhead 68-seat full length dome reached by six stairs up.
There was no centre sill, instead two 24-foot girder-type General Steel castings at each car end met with side sills that were load-bearing in the centre of the car. General also produced the 6-wheel, 11-foot wheelbase Timken roller bearing trucks with 36 1/2" wheels and large outboard springs, each weighing 33,275 pounds, to maintain the 15'6" external height cars' stability. The Trane A/C plant had a 20-ton capacity to keep the car and its 625 sq.ft. glass dome comfortably cool, the refrigeration equipment capable of producing 20 tons of ice per day. The 21 rubber-mounted double-glazed dome glass panels measured 3x5 feet and were lightly tinted. Manufactured by Adams & Westlake, the outer layer was 1/4-inch Pittsburgh Plate Glass Solex heat-resistant plate glass, with a 3/8-inch laminated Solex safety plate glass inside, separated by a 28-inch steel roof panel. Two Waukesha Motor Co. 25 kW diesel generators rated at 40 volts DC rested on pull-out tracks for servicing, also accessible from inside. The 85-foot car, with supplies and passenger load at 224,080 lbs. total weight.

In Milwaukee Road service, the cars were called Super Domes, initially used on the Chicago-Tacoma Olympian Hiawatha and Chicago-Minneapolis Morning and Afternoon Hiawathas.
After 1957, the Sceneramics were deemed surplus to the needs of the Milwaukee Road. Acquired by CN in 1964-65 intended for use by sleeping car passengers, the cars were named after western Canadian rivers upon shopping:
  • 2700 Jasper, ex-MILW 50, acquired by CN in 1964
  • 2701 Athabasca, ex-MILW 53, acquired 1964
  • 2702 Yellowhead, ex-MILW 54, acquired 1964
  • 2703 Fraser, ex-MILW 56, acquired 1964
  • 2704 Qu'Appelle, ex-MILW 51, acquired 1965
  • 2705 Columbia, ex-MILW 52, acquired 1965
Initially numbered in the 2400-series, the cars were renumbered into the 2700-series in 1974. Names were visible on car sides, with numbers on ends. Existing CN parlour car car 573-Athabaska was renamed Great Slave Lake to prevent a conflict. (Columbia at Jasper, above. Jasper at Vancouver, below. Both photos - Brian Schuff collection)
The first four cars entered service by July 1964 after shopping at Transcona. CN replaced 39 centre-dome seats with lounge seating in twos and threes plus revolving single club car seats in 1971. In 1973, the entire upper level was modified with all lounge furniture in red/purple/blue/green with a total capacity of 54 seats.
Modifications were also made to the kitchen, lounge, passageway and a dome serving area was added. The attendant is getting ready to 'highball' in more ways than one. Numerous ashtrays on tables make one wonder about a smoke-filled dome. Notice the clear plastic bound covers on the magazines at right for passengers who have given up on getting a decent view out the dome windows and are tired of looking at their own reflection - 1974 interior photo (Brian Schuff collection):
Some early limitations of the cars' design was the mildly comfortable seating and the minimal forward view from the dome. CN passenger angling for a shot of mountains:
CN passengers made the most of the Sceneramics. A British family travelled across Canada in July 1964, at the dawn of CN's Sceneramic fleet. Their candid photos reveal views of a family exploring our great nation aboard CN's newest passenger cars: dome view of Hell's Gate, dome interior, lower level lounge, single dome seats and passageway and the difficulties of Sceneramic phorward photography, even on a curve! Single CN SW shepherds Sceneramic shadowed by spruce and surprisingly sheer, snow-capped sierra:
For a spine-tingling Sceneramic saga at Jasper, check out Bruce Harvey's Runaway Super-Dome. Thanks to Elijah Hall for the link! Yellowhead in service, 1974 (this and bottom photo, Brian Schuff collection):
CN featured the cars in several brochures from the mid-60's to the early-70's:
John Hardy spent some time in a Sceneramic aboard the Super, heading west from Winnipeg in 1973, from his book Canadian Rail Travel
     "On this trip, the train had a full length Sceneramic dome car in which I rode for much of the afternoon. This car had been purchased used from an American railway as part of CN's passenger marketing strategy. The upper, glassed level of the monstrous car was laid out as an observation lounge with a bar in the middle portion. The lower section contained a lounge, kitchen and generators. Only three passengers and the bar attendant occupied the observation lounge. By moving to the front of the car, I was able to photograph a couple of stations as the train passed through rural Manitoba. Riding up in the warmth of the dome car, I felt insulated from the harsh winter which gripped the Canadian Prairie outside."
Initially, in 1964 the cars were to be serviced in Jasper, but maintenance facilities there proved inadequate, resulting in movement to Edmonton on the Super Continental. Until 1968, the Sceneramics were used on the Super Continental and Panorama. In 1969 they operated year-round on the Super only, though in 1970 they interestingly operated out of Toronto. 1972 CN onboard brochure:
Though I should have known this while writing this post, I did have an opportunity to ride in a Sceneramic on CN's Super Continental. Okay, I was four. L.C. Gagnon photos (three, below) of our family in the dome. We appear larger than life in the reflections!
Two Sceneramics at Jasper. Perhaps one was the Sceneramic added to our train at Jasper.
Our train is stopped at an outlook to view majestic Mount Robson. Check the CN logo on the car ahead, the stepbox and the natty porter's uniform.
From 1970-78 the cars operated Winnipeg-Vancouver from September-June, and Saskatoon-Jasper-Edmonton-Vancouver in summer, except 1976 used Winnipeg-Vancouver year-round. From 1978, the cars operated Edmonton-Vancouver only, except from October 1979-January 1980 operation was Vancouver to Winnipeg. Here's Qu'Appelle at Edmonton:
This 1974 end view at Edmonton shows the cars' lack of vestibules and black end doors with silver push bar complete with car name. This photo brings us to the 'end' of Part 1. Read more about the cars in VIA service in Part 2.
